Multisec Multi-400 Modular Spreader Beam

Engineered to handle extreme loads, the Multisec® Multi-400 has a WLL of 400 tonnes and a span of up to 21 meters, extendable to 22 meters for lighter loads. This heavy-duty beam ensures safe lifting in the most challenging environments.

Why Choose the Multisec Multi-400 Modular Spreader Beam?

The Multisec Multi-400 is part of our modular spreader beam hire range, expertly designed to meet the needs of heavy-duty lifting operations. With a working load limit (WLL) of up to 400 tonnes at spans of 21.0 meters, and the flexibility to extend to 22 meters at reduced capacity, this beam offers a versatile and robust solution for demanding lifting projects.

Key Specifications Include:

High Capacity: Capable of handling up to 200 tonnes, making it ideal for large-scale, heavy-duty lifts.
Adjustable Span: Ranges from 14.5 meters at full capacity to 19.5 meters for lighter loads, giving operators flexibility for various lifting configurations.
Rugged Construction: Built with high-strength steel for exceptional durability, ensuring reliability even in the most challenging conditions.
Modular Flexibility: Incorporates interchangeable struts, end units, and drop links, allowing for quick configuration changes to meet specific lift requirements.
Ease of Assembly: The bolted design enables quick assembly and disassembly, reducing downtime and improving operational efficiency.

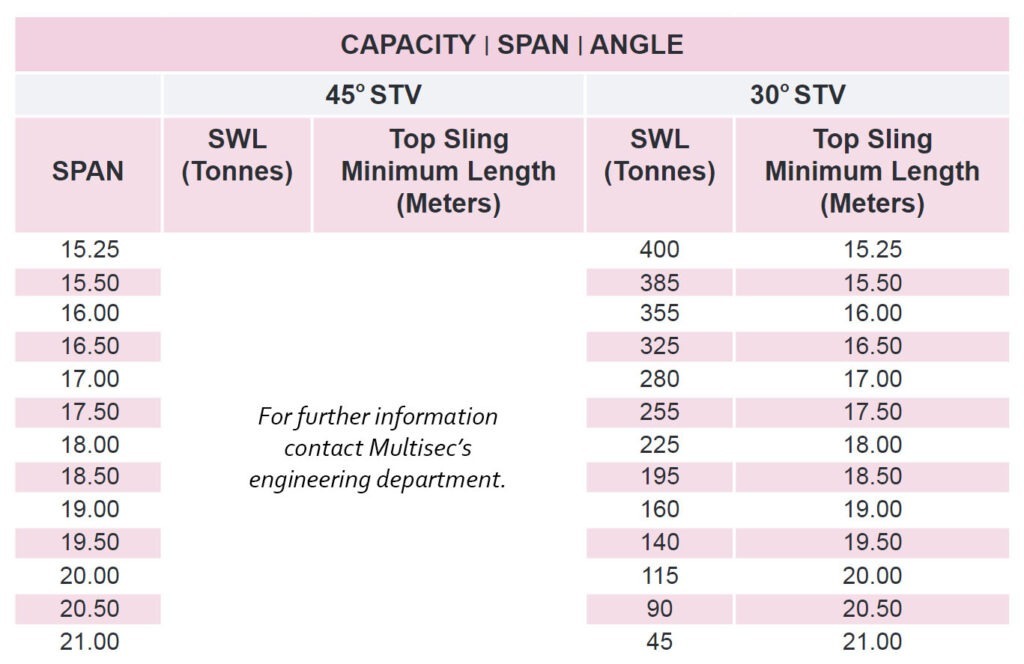

Technical Specifications

Download the Multi-400 Specifications
Download the Multi-400 Specifications

Attention: Please ensure that the instructions for use have been fully read and understood before initial use of the Multi-Sec Modular Spreader Beam System. Failure to do so may result in serious injuries and/or material damage and eliminates manufacturers warranty.
