Multisec Multi-13 Modular Spreader Beam

The Multisec® Multi-13 Modular Spreader Beam is engineered to deliver reliable performance in various lifting applications. Its modular design provides adaptability and ease of use, making it an ideal choice for smaller to mid-sized lifting projects across industries.

Why Choose the Multisec Multi-13 Modular Spreader Beam?

The Multisec Multi-13 is part of our Modular spreader beam product range, designed to handle various lifting requirements while prioritising operational safety. With a 13-tonne capacity and spans ranging from 5.75 meters (at maximum capacity) to 7.75 meters at lower capacity, this beam is adaptable to numerous scenarios, making it perfect for challenging lifting needs.

Key Specifications Include:

Capacity: Up to 13 tonnes.
Span: 5.75m at full capacity, extendable up to 7.75m for lighter loads.
Durable Construction: Built to endure tough working environments, ensuring long-term reliability.
Ease of Use: Easy to assemble and configure with interchangeable struts, end units, and drop links.
Shackles and Dual Slings: Securely connect the beam to your crane or hoist.

Technical Specifications

Each assembly is made up of two end units and two drop links. Comprised with interchangeable struts that can be bolted into the assembly between each end unit to shorten or lengthen the beam to suit the requirements of your specific lift

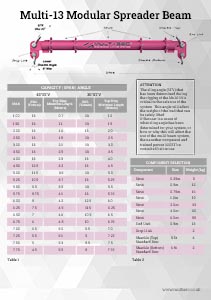

Download the Multi-13 Specifications
Download the Multi-13 Specifications

Attention: Please ensure that the instructions for use have been fully read and understood before initial use of the Multi-Sec Modular Spreader Beam System. Failure to do so may result in serious injuries and/or material damage and eliminates manufacturers warranty.

What Size Shackle Do I Need?

Our selection of shackles is specifically chosen to perfectly match your spreader beam setup, ensuring optimal safety and performance.

For the Multisec Modular Multi-13 Spreader Beam, you’ll need the following:

Standard Bow Shackle (Top): 9.5t
Standard Bow Shackle (Bottom): 6.5t

There’s no need to look further—our compatible shackles are available for both sale and hire, allowing you to complete your lifting setup with ease and confidence.

Choose the right shackle to enhance your lifting operation and maintain the highest standards of safety and efficiency.

Order Form

Ready to buy a Modular Spreader Beam for your next project? Call our sales team on +44 (0)1642 240 672 or fill in the form below for a quote and expert advice on the best lifting solution for your needs. With our extensive range of modular spreader beams and lifting equipment, we ensure your project is completed safely, efficiently, and on time.
