Multisec Multi-110 Modular Spreader Beam

The Multisec® Multi-110 Modular Spreader Beam provides a WLL of 110 tonnes at a span of 12 meters, extendable up to 18 meters for lighter loads. This high-capacity beam is ideal for challenging lifting operations, ensuring strength, safety, and versatility in demanding industrial projects. Its modular design allows for quick adjustments, making it adaptable to various lifting scenarios.

Why Choose the Multisec Multi-110 Modular Spreader Beam?

The Multisec Multi-110 is part of our modular spreader beam range, built to accommodate various lifting demands while maintaining the highest standards of safety. With a capacity of 110 tonnes and spans from 12 meters at full capacity to 18 meters at reduced capacity, this beam provides a versatile solution for complex lifting tasks.

Key Specifications Include:

High Capacity: Supports up to 110 tonnes, making it suitable for heavy-duty applications.
Flexible Span: Spans from 14.5m at full load to 18m for lighter applications, providing flexibility across different lifting needs.
Robust Construction: Manufactured using high-strength steel, ensuring durability and performance in harsh conditions.
Modular Design: Comes with interchangeable struts, end units, and drop links, allowing for quick adjustments to fit various configurations.
Efficient Assembly: Features bolted connections for easy setup and breakdown, reducing assembly time.

Technical Specifications

Each assembly is made up of two end units and two drop links. Comprised with interchangeable struts that can be bolted into the assembly between each end unit to shorten or lengthen the beam to suit the requirements of your specific lift

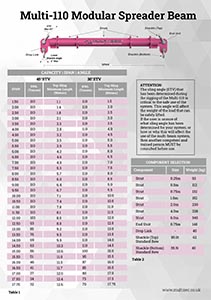

Download the Multi-110 Specifications
Download the Multi-110 Specifications

Attention: Please ensure that the instructions for use have been fully read and understood before initial use of the Multi-Sec Modular Spreader Beam System. Failure to do so may result in serious injuries and/or material damage and eliminates manufacturers warranty.

What Size Shackle Do I Need?

Our selection of shackles is specifically chosen to perfectly match your spreader beam setup, ensuring optimal safety and performance.

For the Multisec Modular Multi-110 Spreader Beam, you’ll need the following:

Standard Bow Shackle (Top): 85t
Standard Bow Shackle (Bottom): 55t

There’s no need to look further—our compatible shackles are available for both sale and hire, allowing you to complete your lifting setup with ease and confidence.

Choose the right shackle to enhance your lifting operation and maintain the highest standards of safety and efficiency.

Order Form

Ready to buy a Modular Spreader Beam for your next project? Call our sales team on +44 (0)1642 240 672 or fill in the form below for a quote and expert advice on the best lifting solution for your needs. With our extensive range of modular spreader beams and lifting equipment, we ensure your project is completed safely, efficiently, and on time.
